RK-2910有刷电机 /圆型铁壳
用途： 汽车尾门推杆
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

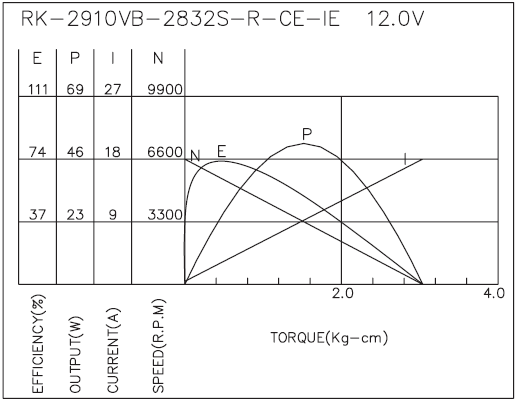

| RK-2910VB-2832S-R-CE-IE | 10.0-14.4V | 12.0V CONSTANT | 6600 | 700 | 5800 | 3.80 | 530 | 52 | 30.00 | 70 | 20.00 | 3200 | 313 |
| RK-2910VB-1093S-R-CE-IE | 12.0-24.0V | 24.0V CONSTANT | 4600 | 120 | 3743 | 0.56 | 220 | 22 | 8.34 | 62 | 2.47 | 1200 | 118 |
| RK-2910VB-2549S-R-CE-IE | 12.0-24.0V | 24.0V CONSTANT | 9500 | 360 | 8313 | 2.57 | 550 | 55 | 47.72 | 78 | 18.56 | 4700 | 461 |
| RK-2910VB-3020S-R-CE-IE | 12.0-24.0V | 12.0V CONSTANT | 11000 | 900 | 9381 | 4.75 | 420 | 41 | 40.17 | 70 | 26.95 | 2800 | 278 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
