RK-290有刷电机 /圆型铁壳
用途： 电动开窗器
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| RK-290B-17230S-CE | 18.5-29.5 | 24.0V CONSTANT | 7800 | 0.12 | 5760 | 0.53 | 124.8 | 12.23 | 7.38 | 60 | 1.85 | 526 | 51.56 |
| RK-290B-20150-CE | 12.0-24.0 | 12.0V CONSTANT | 6200 | 0.16 | 4792 | 0.54 | 83.1 | 8.15 | 4.09 | 66 | 2.43 | 454 | 44.51 |

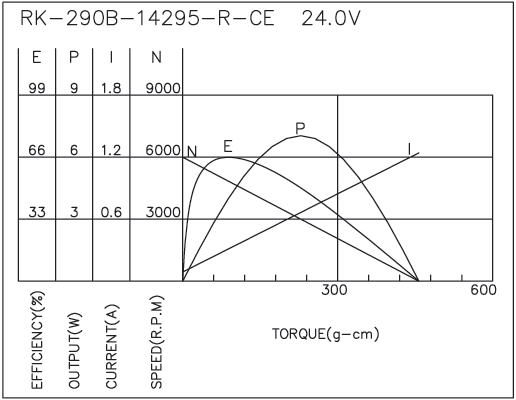

| RK-290B-14295-CE | 12.0-36.0 | 24.0V CONSTANT | 6000 | 0.09 | 4861 | 0.27 | 81.6 | 8.00 | 4.07 | 66 | 1.24 | 457 | 44.80 |

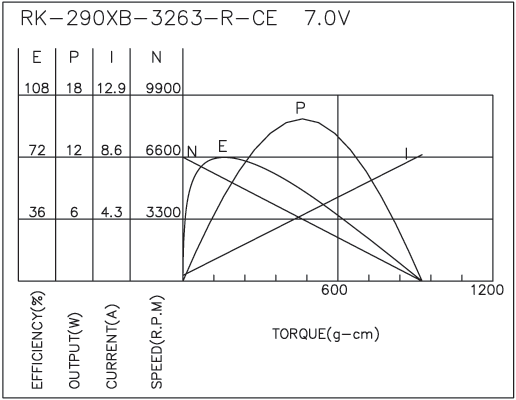

| RK-290XB-3263-R-CE | 6.0-12.0 | 7.0V CONSTANT | 6600 | 0.40 | 5624 | 1.52 | 128.5 | 12.60 | 7.42 | 72 | 8.77 | 927 | 90.88 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
