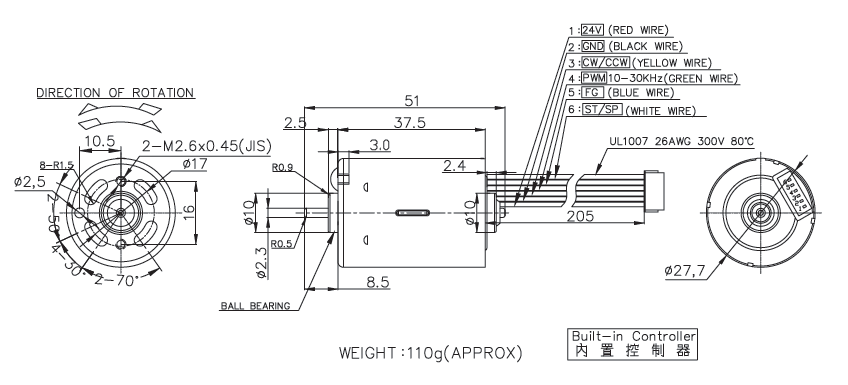

BLDC2838无刷电机 /圆型铁壳
用途： 吸尘机器人
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

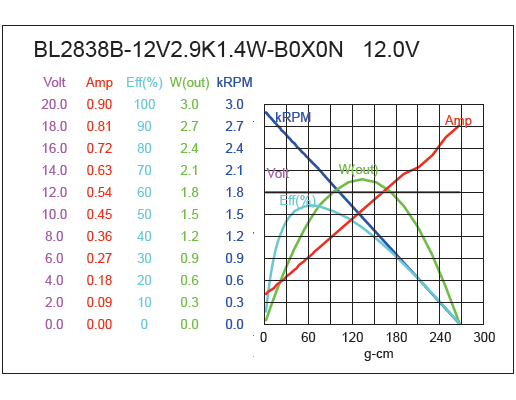

| BL2838B-12V2.9K1.4W-B0X0N | 9.0-30.0 | 12.0V CONSTANT | 2900 | 0.67 | 2248 | 0.27 | 62.55 | 6.43 | 1.44 | 55 | 0.81 | 267.59 | 26.23 |

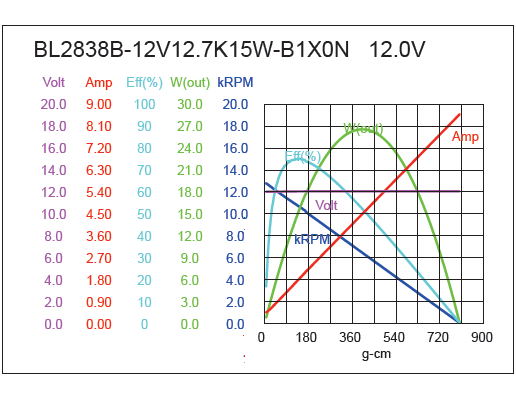

| BL2838B-12V12.7K15W-B1X0N | 9.0-30.0 | 12.0V CONSTANT | 12700 | 0.31 | 10730 | 1.79 | 140.30 | 13.75 | 15.46 | 76 | 8.61 | 803.31 | 78.76 |

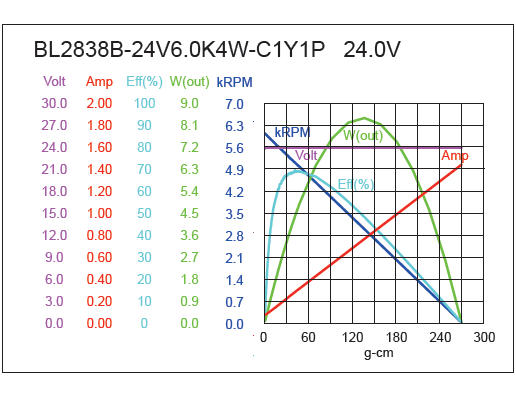

| BL2838B-24V6.0K4W-C1Y1P | 9.0-30.0 | 24.0V CONSTANT | 6000 | 0.05 | 5139 | 0.28 | 82.83 | 8.12 | 4.37 | 70 | 1.45 | 541.46 | 53.08 |

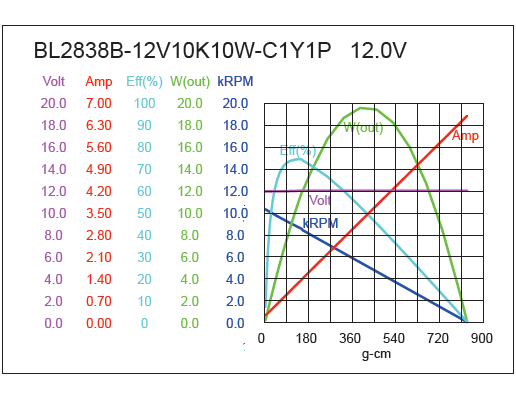

| BL2838B-12V10K10W-C1Y1P | 9.0-30.0 | 12.0V CONSTANT | 10380 | 0.21 | 8834 | 1.21 | 117.20 | 11.49 | 10.63 | 75 | 6.63 | 810.00 | 79.41 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
