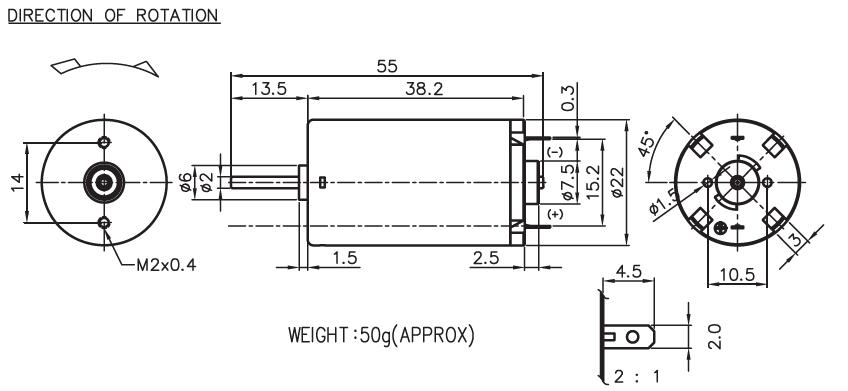

RK-L250有刷电机 /圆型铁壳
用途： 电动窗帘 、电动开罐器
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

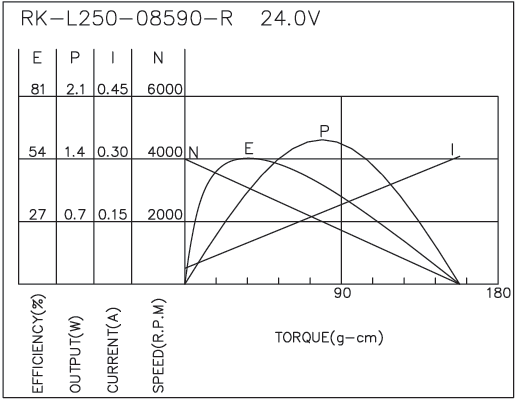

| RK-L250VBC-08590-R | 14.0-30.0 | 24.0V CONSTANT | 3800 | 0.035 | 2810 | 0.092 | 36.60 | 3.58 | 1.08 | 50.50 | 0.30 | 164 | 16.07 |

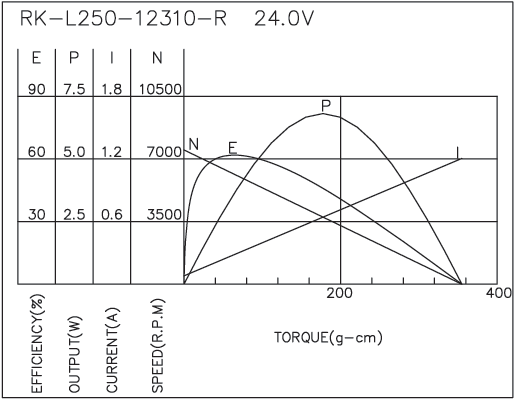

| RK-L250-12310-R | 12.0-30.0 | 24.0V CONSTANT | 7500 | 0.080 | 5938 | 0.254 | 60.61 | 5.94 | 3.70 | 61.63 | 1.20 | 355 | 34.80 |

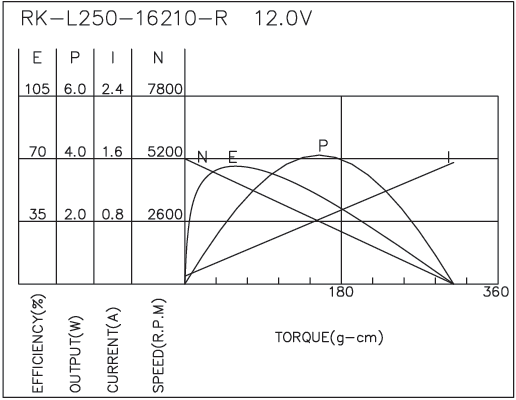

| RK-L250-16210-R | 6.0-24.0 | 12.0V CONSTANT | 5200 | 0.100 | 4474 | 0.337 | 54.71 | 5.36 | 2.51 | 65.57 | 1.55 | 309 | 30.29 |
| RK-L250VBC-18185-R | 6.0-18.0 | 12.0V CONSTANT | 6000 | 0.105 | 5071 | 0.359 | 54.06 | 5.30 | 2.81 | 68.98 | 2.07 | 377 | 36.96 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
