BLDC2832无刷电机 /圆型铁壳
用途： 吸尘机器人
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

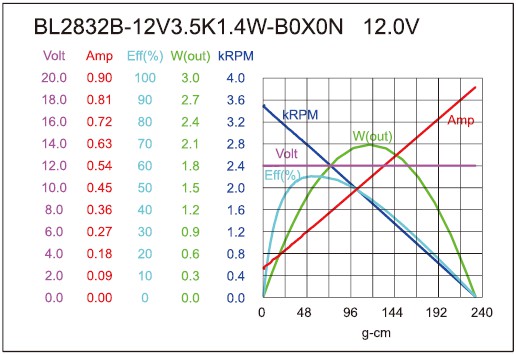

| BL2832B-12V3.5K1.4W-B0X0N | 6.0-30.0 | 12.0V CONSTANT | 3500 | 0.67 | 2719 | 0.28 | 53.11 | 5.21 | 1.48 | 55 | 0.86 | 233.20 | 22.86 |

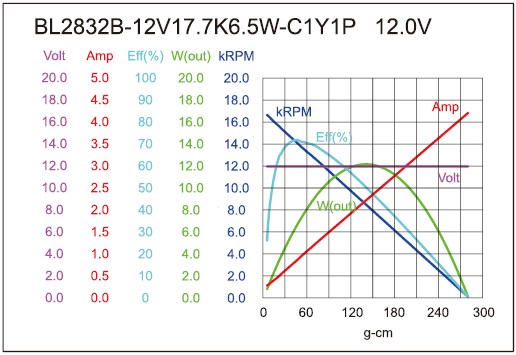

| BL2832B-12V17.7K6.5W-C1Y1P | 6.0-30.0 | 12.0V CONSTANT | 17700 | 0.17 | 14144 | 0.85 | 46.87 | 4.60 | 6.81 | 73 | 4.23 | 281.64 | 27.61 |

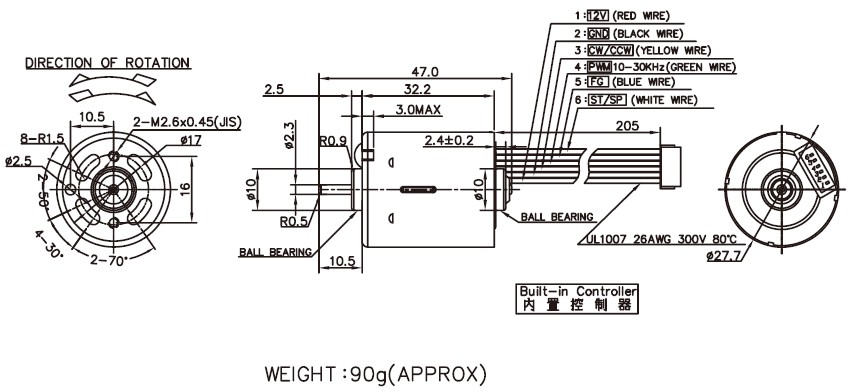

马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
