BL7084无刷电机 /圆型铁壳
用途： 电锯 、电锤
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

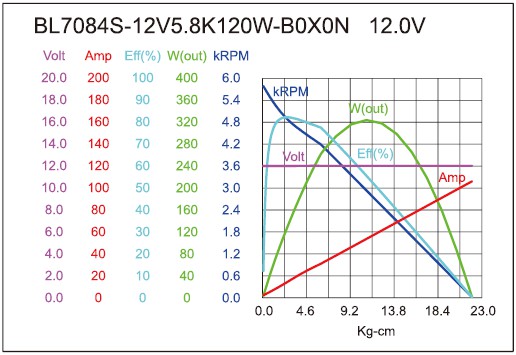

| BL7084S-12V5.8K120W-B0X0N | 12.0-48.0 | 12.0V CONSTANT | 5800 | 1.64 | 4909 | 13.70 | 2507 | 245.781 | 126.38 | 83 | 106.82 | 22031 | 2159.90 |

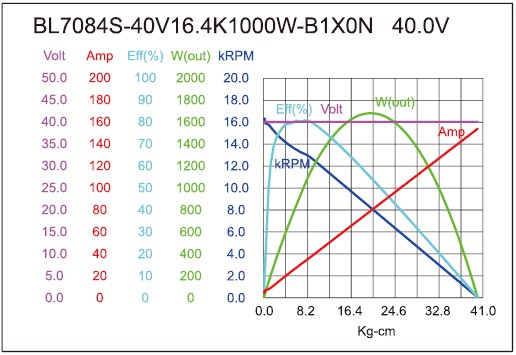

| BL7084S-40V16.4K1000W-B1X0N | 12.0-48.0 | 40.0V CONSTANT | 16400 | 3.20 | 13158 | 32.58 | 7632 | 748.24 | 1031.29 | 82 | 154.62 | 40101 | 3931.41 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
