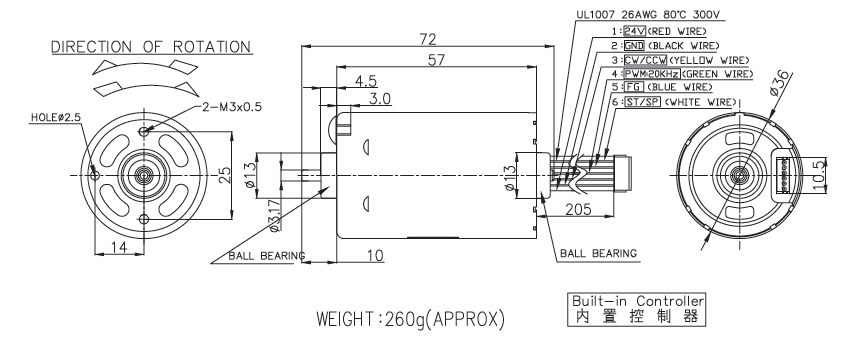

BL3657无刷电机 /圆型铁壳
用途： 泵浦 、汽车喷水泵 、风扇 、齿轮箱 、气泡布制造机
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

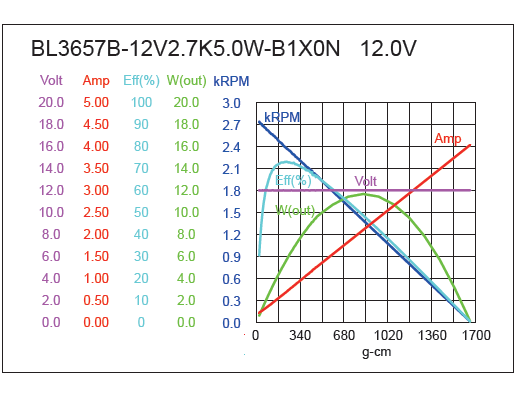

| BL3657B-12V2.7K5.0W-B1X0N | 10.0-30.0 | 12.0V CONSTANT | 2700 | 0.15 | 2408 | 0.64 | 217.60 | 21.33 | 5.38 | 74 | 4.05 | 1662.2 | 162.94 |

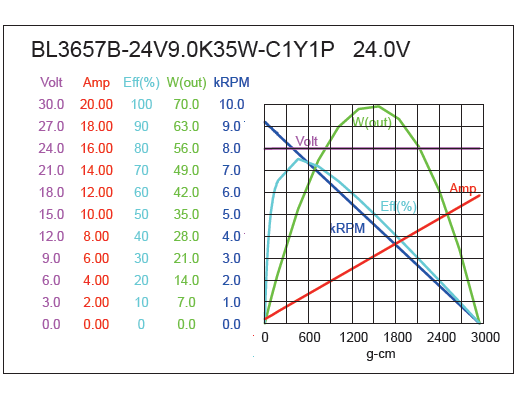

| BL3657B-24V9.0K35W-C1Y1P | 10.0-30.0 | 24.0V CONSTANT | 9000 | 0.35 | 7786 | 2.16 | 458.9 | 44.99 | 36.69 | 76 | 11.78 | 2952.1 | 289.42 |

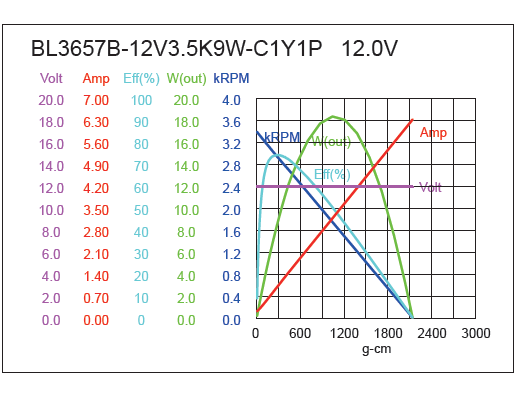

| BL3657B-12V3.5K9W-C1Y1P | 10.0-30.0 | 12.0V CONSTANT | 3500 | 0.17 | 2963 | 0.97 | 275 | 26.96 | 8.38 | 75 | 6.36 | 2146.4 | 210.43 |

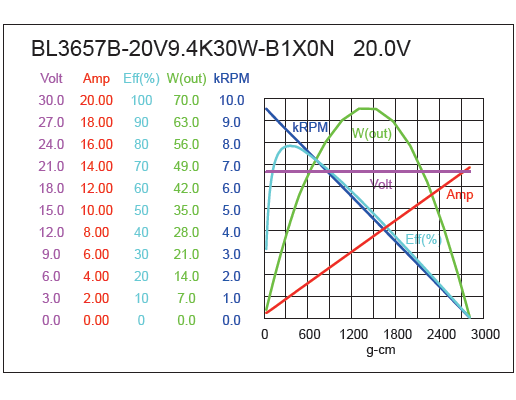

| BL3657B-20V9.4K30W-B1X0N | 10.0-30.0 | 20.0V CONSTANT | 9400 | 0.30 | 8525 | 1.83 | 322 | 31.57 | 28.19 | 79 | 13.79 | 2817.0 | 276.18 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
