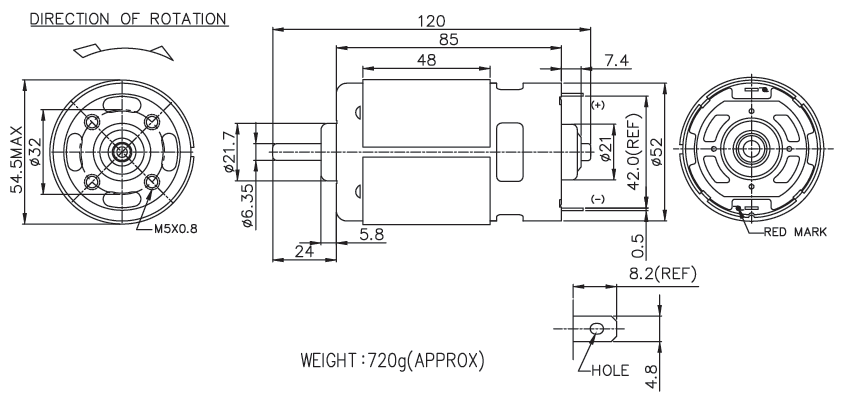

997有刷电机 /圆型铁壳
用途： 电动工具 、电动门
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

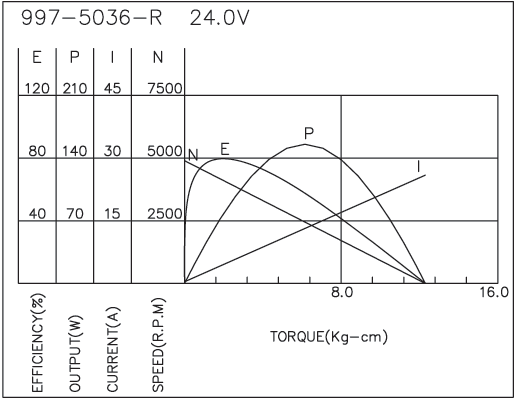

| 997-5036-R | 18.0-48.0 | 24.0V CONSTANT | 4900 | 0.42 | 4198 | 2.79 | 1197 | 117.35 | 51.60 | 79.67 | 25.95 | 12350 | 1211 |

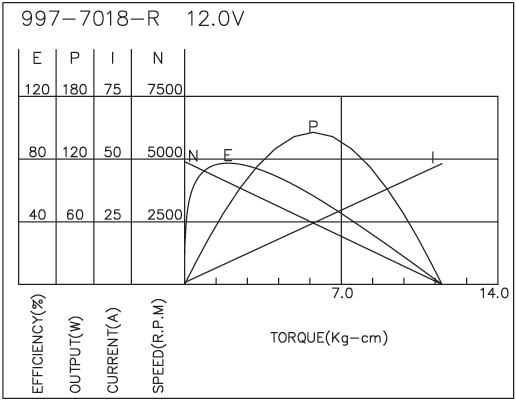

| 997-7018-R | 6.0-36.0 | 12.0V CONSTANT | 4900 | 1.40 | 4182 | 5.40 | 1168 | 114.51 | 50.16 | 78.44 | 48.12 | 11499 | 1127 |

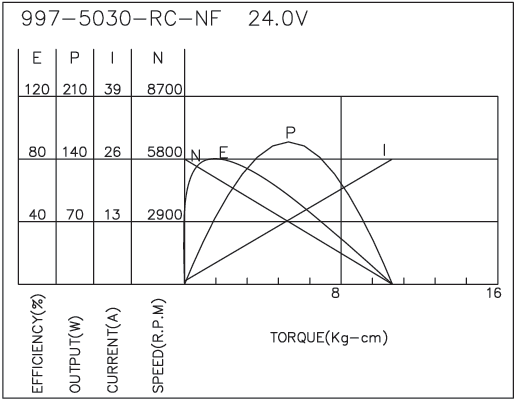

| 997-5030-RC-NF | 12.0-36.0 | 24.0V CONSTANT | 5800 | 0.65 | 5165 | 2.84 | 1022 | 100.20 | 54.21 | 80 | 26.65 | 10623 | 1041 |
| 997B-5015x2TF-R | 24.0-40.0 | 40.0V CONSTANT | 19500 | 2.50 | 17361 | 13.94 | 2634 | 258.24 | 469.62 | 85 | 110.79 | 23373 | 2291 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
