PC-280有刷电机 /方型铁壳
用途： 印表机 、中控锁 、电动后视镜收折 、自动贩卖机 、美容仪器
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

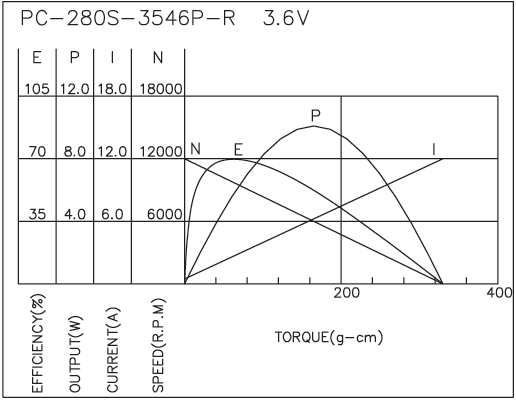

| PC-280S-3546-R | 3.0-4.5 | 3.6V CONSTANT | 12000 | 0.48 | 10000 | 2.20 | 52 | 5.10 | 5.39 | 70 | 11.62 | 330 | 32.35 |
| PC-280S-2663-R | 6.0-9.0 | 7.2V CONSTANT | 17500 | 0.45 | 15129 | 1.33 | 41 | 4.02 | 6.36 | 68 | 8.15 | 311 | 30.49 |

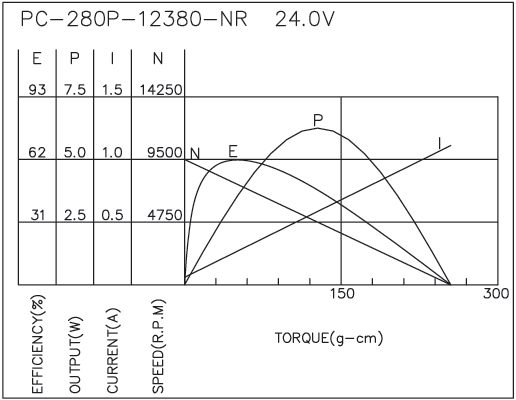

| PC-280P-12380-NR | 12.0-24.0 | 24.0V CONSTANT | 9500 | 0.06 | 7305 | 0.25 | 49 | 4.80 | 3.65 | 62 | 1.11 | 256 | 25.10 |

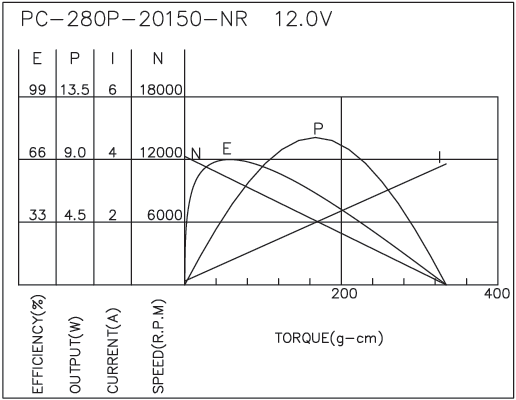

| PC-280P-20150-NR | 6.0-12.0 | 12.0V CONSTANT | 12300 | 0.12 | 10300 | 0.72 | 53 | 5.20 | 5.64 | 66 | 3.86 | 334 | 32.75 |

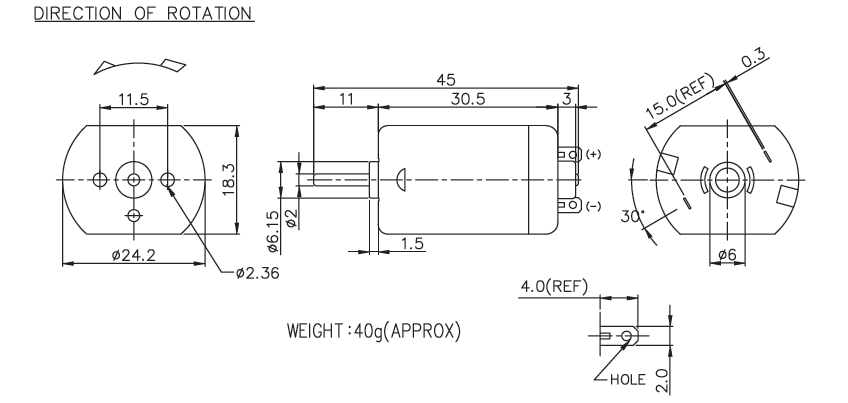

马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
