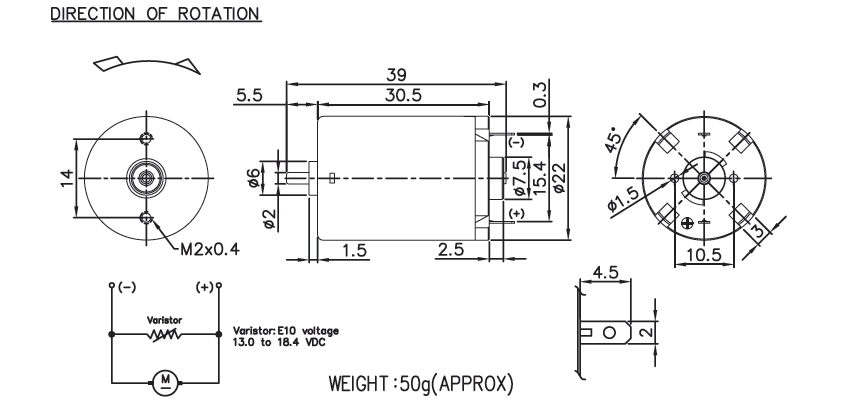

RK-250有刷电机 /圆型铁壳
用途： 电动窗帘 、电动开窗器 、基地台
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

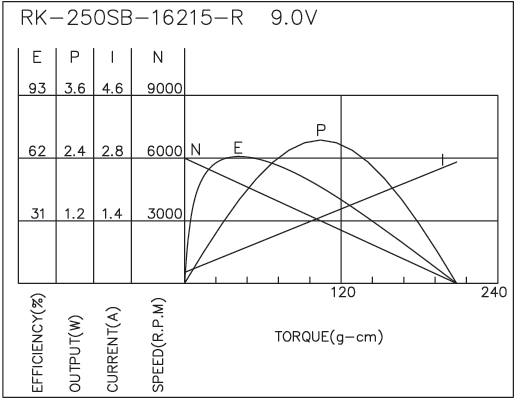

| RK-250SB-16215-R | 6.0-18.0 | 9.0V CONSTANT | 6000 | 0.14 | 4798 | 0.36 | 39.86 | 3.82 | 1.96 | 63 | 1.55 | 208 | 20.39 |

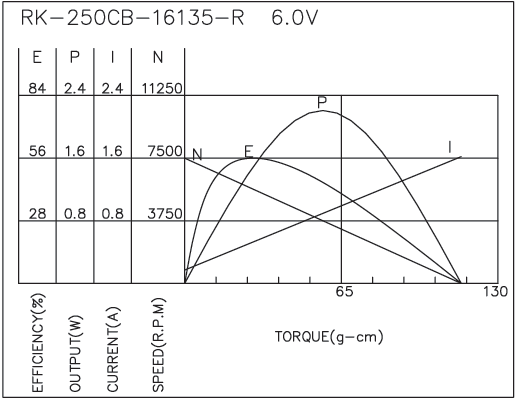

| RK-250CB-16135-R | 6.0-18.0 | 6.0V CONSTANT | 7500 | 0.17 | 5605 | 0.46 | 26.90 | 2.64 | 1.55 | 56 | 1.62 | 115 | 11.27 |
| RK-250VC-11360-R | 12.0-28.0 | 24.0V CONSTANT | 9000 | 0.08 | 7174 | 0.23 | 49.27 | 4.83 | 3.63 | 65 | 1.19 | 303 | 29.71 |

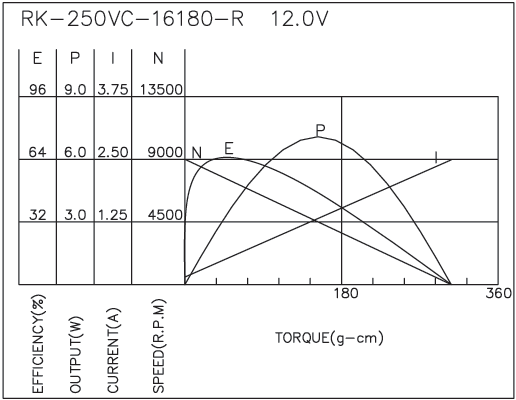

| RK-250VC-16180-R | 4.5-15.0 | 12.0V CONSTANT | 9000 | 0.15 | 7321 | 0.47 | 45.40 | 4.45 | 3.41 | 65 | 2.49 | 306 | 30.00 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
