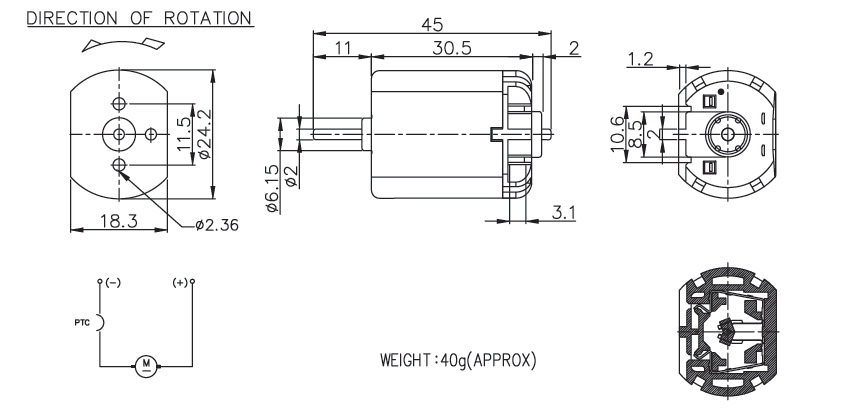

FC-260有刷电机 /圆型铁壳
用途： 电动按摩器 、摇控车 、风扇
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| FC-260-2670-NR | 3.0-4.5 | 3.0V CONSTANT | 10000 | 0.30 | 7800 | 1.09 | 16.83 | 1.65 | 1.35 | 41.40 | 3.97 | 78 | 7.65 |

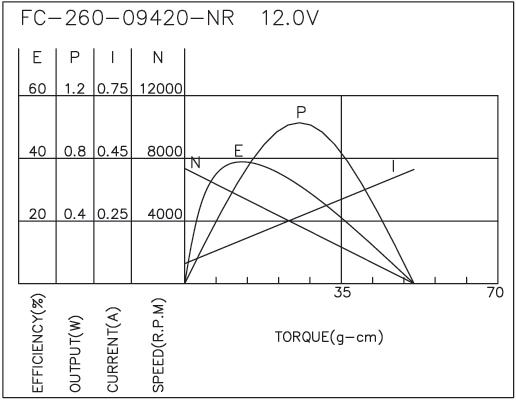

| FC-260-09420-NR | 6.0-18.0 | 12.0V CONSTANT | 7850 | 0.8 | 5685 | 0.16 | 12.23 | 1.20 | 0.71 | 38.85 | 0.45 | 70 | 5.00 |

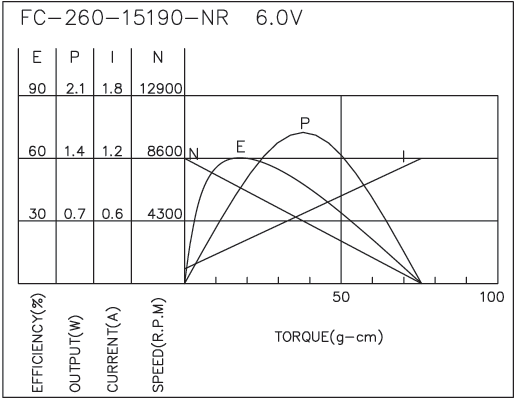

| FC-260-15190-NR | 6.0-12.0 | 6.0V CONSTANT | 8600 | 0.14 | 6173 | 0.34 | 16.32 | 1.60 | 1.03 | 50.97 | 1.26 | 60 | 7.45 |

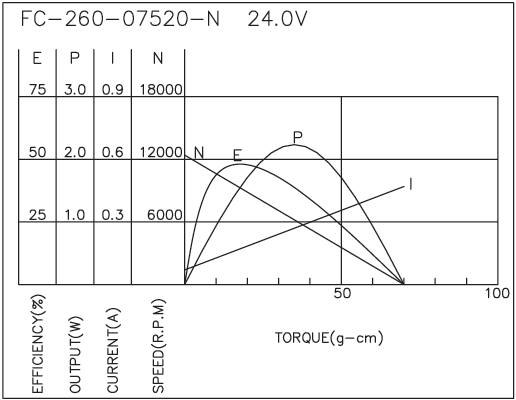

| FC-260-07520-NR | 12.0-24.0 | 24.0V CONSTANT | 12400 | 0.07 | 9500 | 0.14 | 15.88 | 1.56 | 1.56 | 47.85 | 0.47 | 70 | 6.86 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
