FC-280有刷电机 /圆型铁壳
用途： 电动按摩器 、电动理发器 、摇控车
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| FC-280-20120-N | 4.5-9.0 | 6.0V CONSTANT | 10000 | 0.13 | 7800 | 0.60 | 21.62 | 2.11 | 1.70 | 50 | 2.23 | 105 | 10.29 |
| FC-280-12280-N | 6.0-12.0 | 12.0V CONSTANT | 8700 | 0.07 | 6800 | 0.26 | 21.38 | 2.10 | 1.50 | 49 | 0.95 | 100 | 9.80 |
| FC-280S-2865-N | 4.5-6.0 | 4.5V CONSTANT | 10000 | 0.28 | 8300 | 1.39 | 38.45 | 3.77 | 3.29 | 52 | 6.95 | 230 | 22.55 |

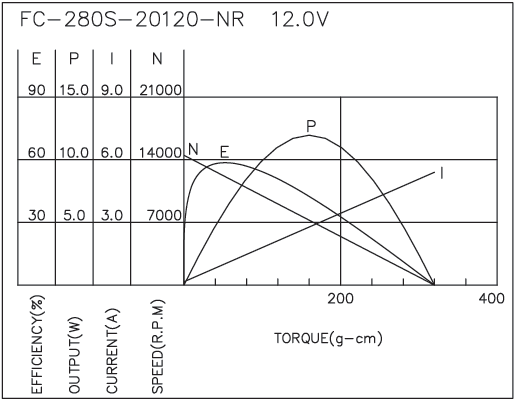

| FC-280S-20120-N | 4.5-12.0 | 12.0V CONSTANT | 15700 | 0.21 | 12853 | 0.92 | 54.96 | 5.39 | 7.22 | 66 | 4.49 | 323 | 31.67 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
