L3N/L5N有刷电机 /圆型铁壳
用途： 电动工具 、警示灯 、吹风机 、吸尘器
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

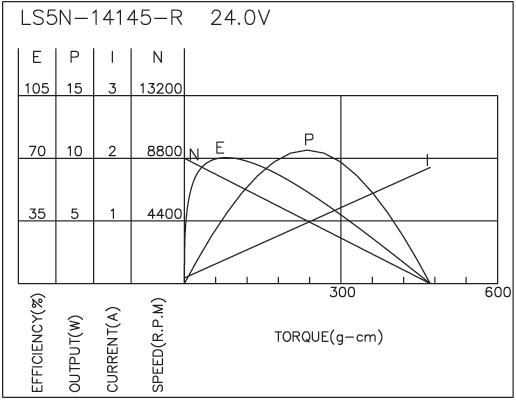

| LS5N-14145-R | 12.0-24.0 | 24.0V CONSTANT | 8800 | 0.09 | 7500 | 0.32 | 65 | 6.37 | 5.06 | 70 | 1.85 | 471 | 46.18 |

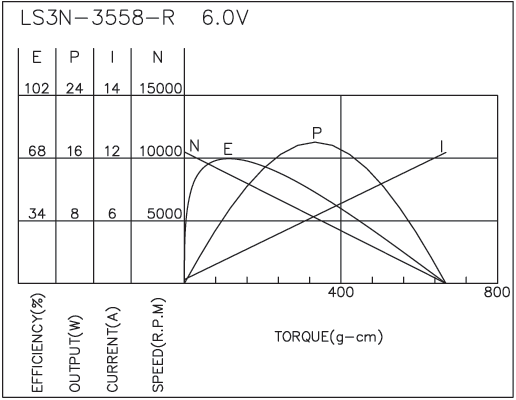

| LS3N-3558-R | 3.0-7.2 | 6.0V CONSTANT | 10500 | 0.40 | 8800 | 2.20 | 98 | 9.61 | 8.93 | 68 | 12.60 | 668 | 65.49 |
| LP3N-14350-R | 6.0-12.0 | 12.0V CONSTANT | 3200 | 0.06 | 2600 | 0.21 | 57 | 5.20 | 1.43 | 57 | 0.83 | 263 | 25.78 |

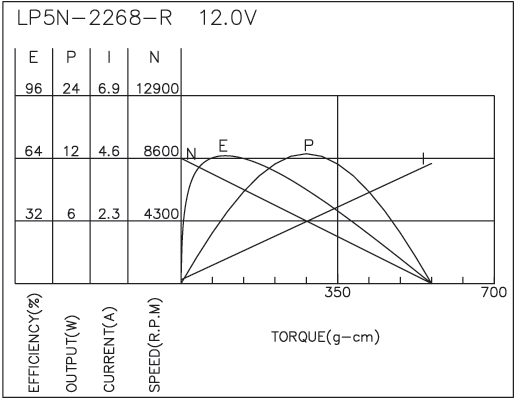

| LP5N-2268-R | 6.0-18.0 | 12.0V CONSTANT | 8600 | 0.14 | 7100 | 0.89 | 93 | 9.11 | 6.87 | 65 | 4.41 | 560 | 54.90 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
