J3有刷电机 /圆型铁壳
用途： 电动工具 、吸尘机器人
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

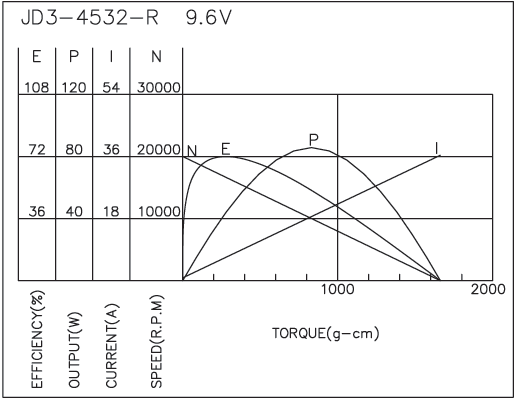

| JD3-4532 | 4.8-9.6 | 9.6V CONSTANT | 20000 | 0.80 | 16800 | 5.60 | 223 | 23.86 | 38.73 | 72 | 36.39 | 1662 | 162.94 |
| JD3-5520 | 3.6-7.2 | 7.2V CONSTANT | 23500 | 1.50 | 19500 | 8.17 | 191 | 18.73 | 38.35 | 66 | 42.45 | 1214 | 119.02 |

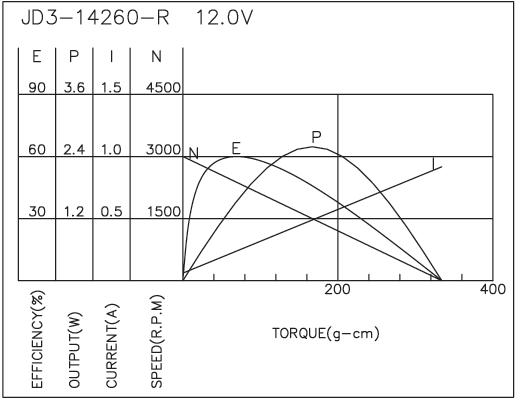

| JD3-14260 | 6.0-24.0 | 12.0V CONSTANT | 3000 | 0.06 | 2300 | 0.22 | 64 | 6.27 | 1.54 | 60 | 0.91 | 334 | 32.75 |
| JD3-3066 | 6.0-18.0 | 12.0V CONSTANT | 12500 | 0.35 | 10661 | 1.96 | 160 | 15.69 | 17.50 | 77 | 13.28 | 1240 | 121.57 |

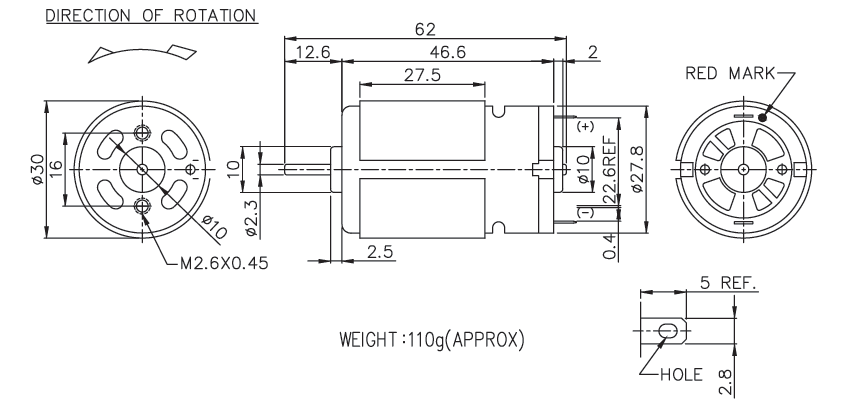

马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
