H3SN/H5N有刷电机 /圆型铁壳
用途： 电动工具 、汽车打气泵 、吸尘器 、摇控车 、咖啡机
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

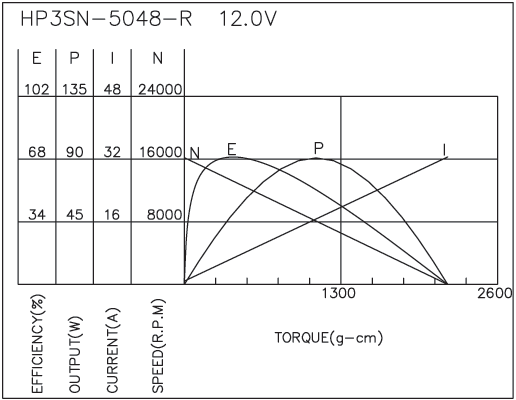

| HP3SN-5048-R | 6.0-12.0 | 12.0V CONSTANT | 16200 | 0.86 | 13800 | 5.38 | 312 | 30.59 | 44.34 | 69 | 32.55 | 2186 | 214.31 |

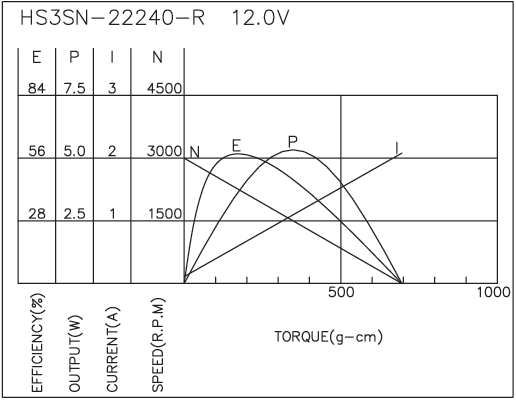

| HS3SN-22240 | 12.0-24.0 | 12.0V CONSTANT | 3000 | 0.11 | 2300 | 0.56 | 162 | 15.88 | 3.84 | 58 | 2.07 | 695 | 68.14 |

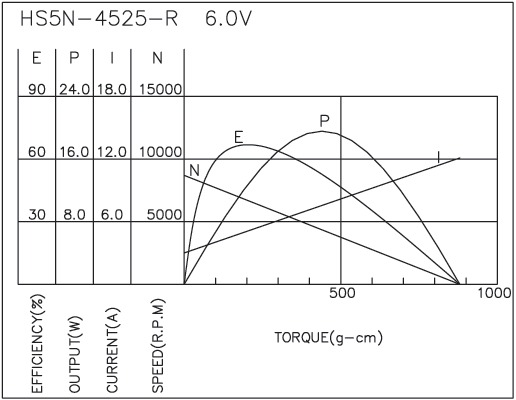

| HS5N-4525-R | 6.0-12.0 | 6.0V CONSTANT | 8700 | 1.00 | 6800 | 3.30 | 190 | 18.63 | 13.25 | 66 | 12.10 | 2186 | 86.27 |

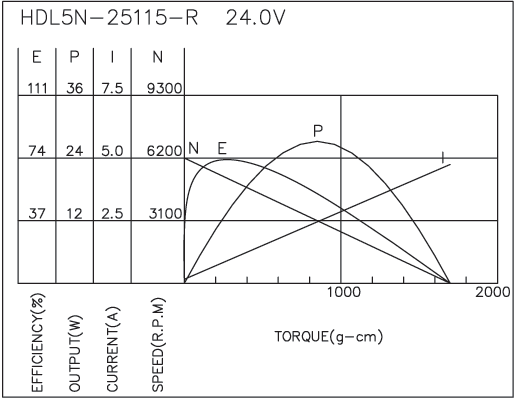

| HDL5N-25115-R | 12.0-24.0 | 24.0V CONSTANT | 6200 | 0.16 | 5405 | 0.85 | 263 | 25.78 | 14.60 | 74 | 4.74 | 1081 | 165.59 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
