H5FN有刷电机 /圆型铁壳
用途： 印表机 、电动工具 、吸尘器 、电动按摩器
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

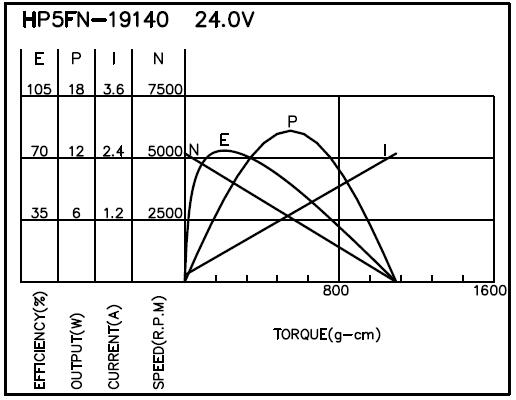

| HP5FN-19140 | 12.0-24.0 | 24.0V CONSTANT | 5200 | 0.13 | 4191 | 0.46 | 180 | 17.65 | 7.76 | 74 | 2.42 | 1095 | 107.35 |

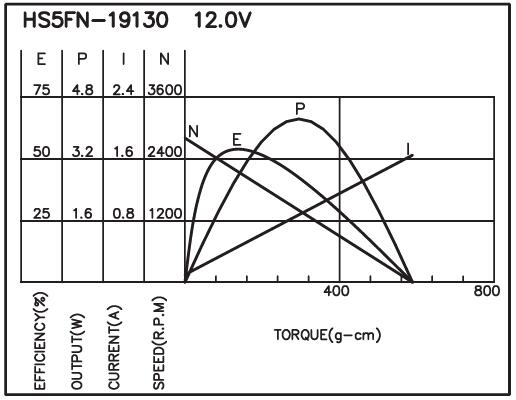

| HS5FN-19130 | 12.0-24.0 | 12.0V CONSTANT | 2800 | 0.10 | 2100 | 0.44 | 126 | 12.35 | 2.81 | 54 | 1.65 | 589 | 57.75 |

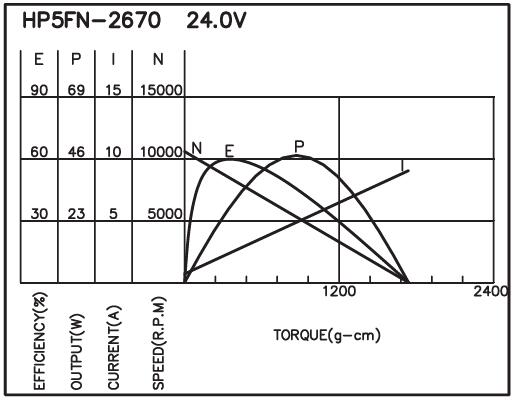

| HP5FN-2670 | 12.0-24.0 | 24.0V CONSTANT | 10600 | 0.70 | 8600 | 1.93 | 311 | 30.49 | 27.69 | 60 | 9.05 | 1739 | 170.49 |

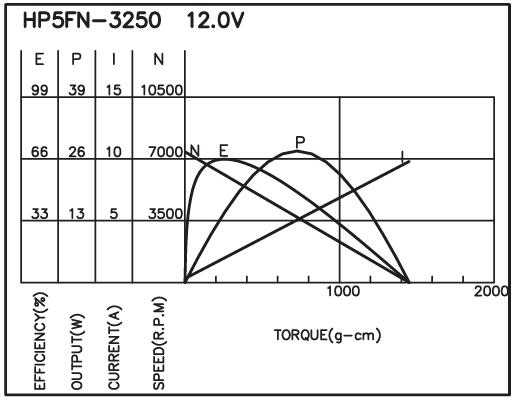

| HP5FN-3250 | 12.0-24.0 | 12.0V CONSTANT | 7400 | 0.32 | 6200 | 1.76 | 219 | 21.47 | 13.96 | 66 | 9.83 | 1451 | 142.25 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
