N3FN/N5FN有刷电机 /圆型铁壳
用途： 电动工具 、玩具
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

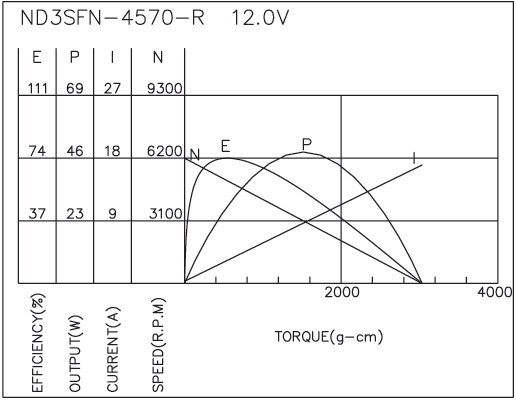

| ND3SFN-4570-R | 6.0-24.0 | 12.0V CONSTANT | 6200 | 0.30 | 5400 | 2.17 | 342. | 33.33 | 19.08 | 74 | 17.02 | 3034 | 297.45 |

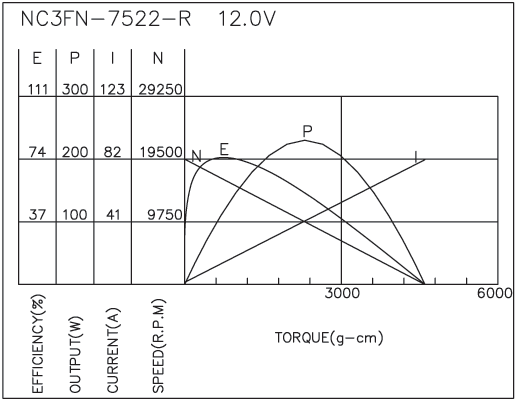

| NC3SFN-7522-R | 6.0-12.0 | 12.0V CONSTANT | 19500 | 1.40 | 17500 | 9.42 | 466 | 45.69 | 83.95 | 75 | 81.60 | 4603 | 451.27 |

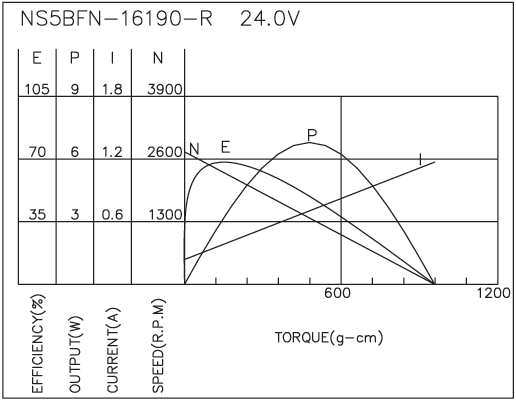

| NS5BFN-16190-R | 12.0-36.0 | 12.0V CONSTANT | 2750 | 0.09 | 2199 | 0.24 | 155 | 15.18 | 3.49 | 68 | 1.18 | 958 | 93.92 |
| NC5FN-3545-R | 12.0-36.0 | 36.0V CONSTANT | 15600 | 0.30 | 14300 | 2.14 | 415 | 40.69 | 21.85 | 80 | 21.85 | 4578 | 448.82 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
