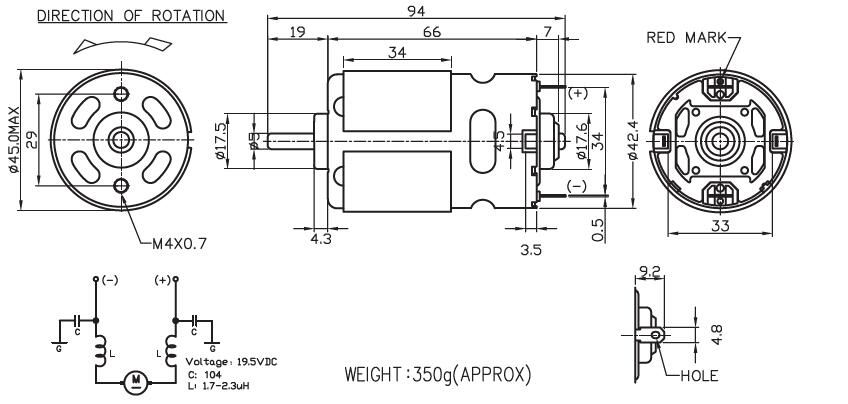

775有刷电机 /圆型铁壳
用途： 割草机 、电动工具 、喷雾器
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

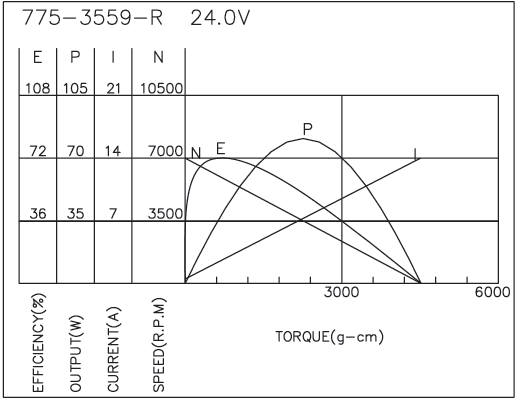

| 775-3559-R | 6.0-36.0 | 24.0V CONSTANT | 7000 | 0.05 | 5862 | 2.19 | 620 | 61 | 37.32 | 72 | 14.03 | 4519 | 443 |

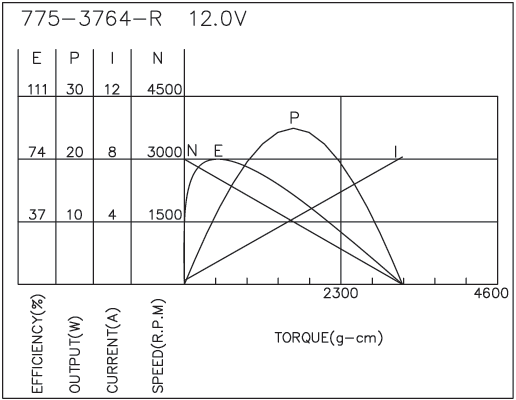

| 775-3764-R | 12.0-36.0 | 12.0V CONSTANT | 3000 | 0.25 | 2523 | 1.12 | 382 | 37 | 9.90 | 74 | 8.15 | 3205 | 314 |

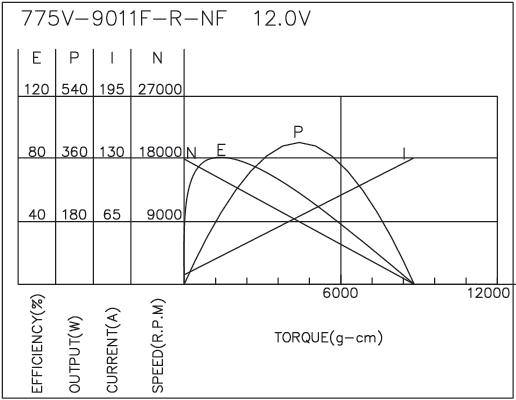

| 775-9011F-R-NF | 6.0-12.0 | 12.0V CONSTANT | 18000 | 5.00 | 16287 | 1.05 | 1052 | 103 | 175.96 | 81 | 130.75 | 8814 | 864 |

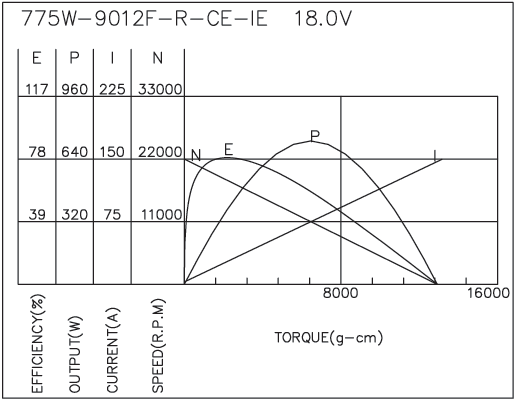

| 775W-9012F-R-CE-IE | 6.0-18.0 | 18.0V CONSTANT | 22000 | 4.60 | 18939 | 1.74 | 1741 | 171 | 338.61 | 79 | 151.67 | 12920 | 1267 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
