775BE有刷电机 /圆型铁壳
用途： 电动工具
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

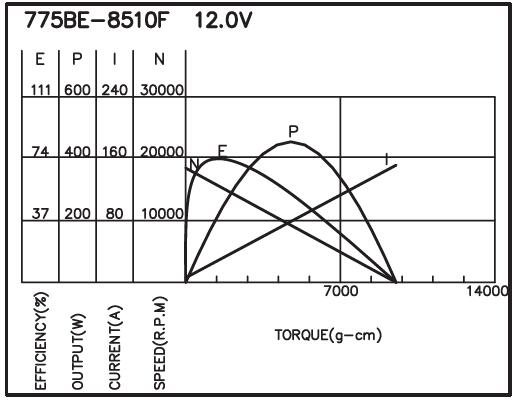

| 775BE-8510F | 6.0-12.0 | 12.0V CONSTANT | 18500 | 6.00 | 15974 | 26.35 | 1397 | 136.96 | 229.17 | 75 | 151.75 | 9534 | 934.71 |

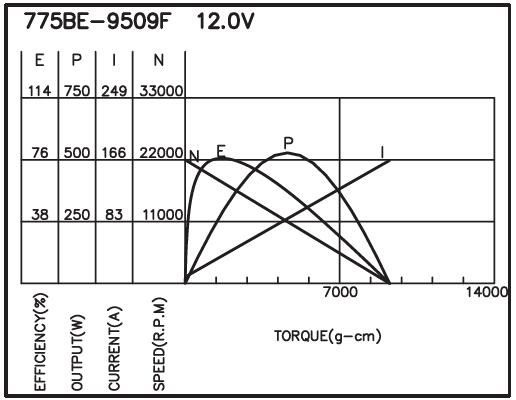

| 775BE-9509F | 6.0-12.0 | 12.0V CONSTANT | 22000 | 8.70 | 18416 | 32.86 | 1549 | 151.86 | 292.95 | 77 | 165.24 | 9310 | 912.75 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
