RK-370X有刷电机 /圆型铁壳
用途： 电动工具 、吸尘器 、电动螺丝起子
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

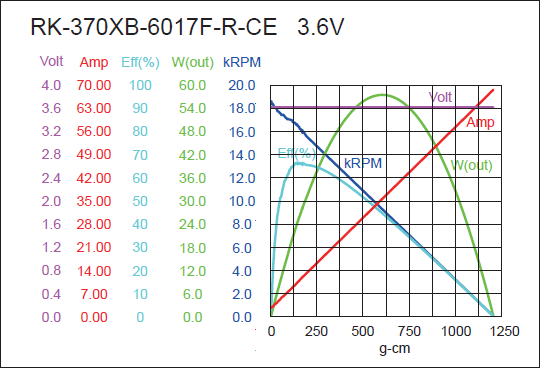

| RK-370XB-6017F-R-CE | 2.4 - 5.0 | 3.6V CONSTANT | 20000 | 2.0 | 16260 | 11.5 | 165 | 16.2 | 27.7 | 68 | 69.0 | 1208 | 118.4 |

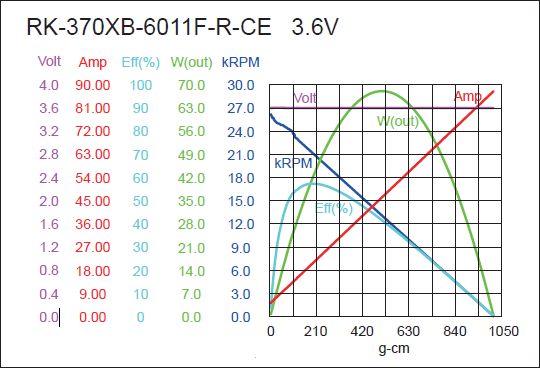

| RK-370XB-6011F-R-CE | 2.4 - 3.6 | 3.6V CONSTANT | 30000 | 3.9 | 21150 | 20.8 | 195 | 19.1 | 42.4 | 58 | 87.7 | 1016 | 99.6 |

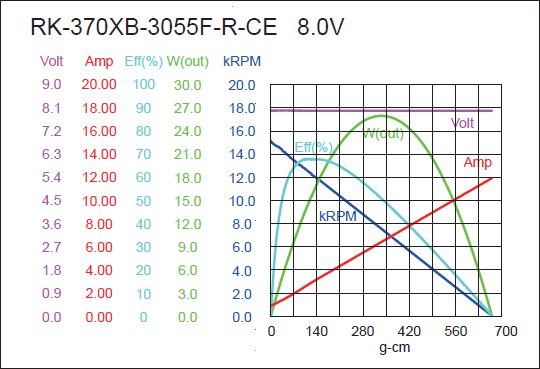

| RK-370XB-3055F-R-CE | 2.4 -14.4 | 8.0V CONSTANT | 15000 | 0.5 | 12360 | 2.9 | 122 | 12.0 | 15.5 | 69 | 12.3 | 700 | 65.8 |
| RK-370XB-3256F-R-CE | 2.4 -14.4 | 12.0V CONSTANT | 21000 | 0.8 | 18150 | 3.5 | 160 | 15.7 | 29.7 | 71 | 23.0 | 1311 | 128.5 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
