H3SFN／H5FN有刷电机 /圆型铁壳
用途： 印表机 、电动工具 、汽车喷水泵 、吸尘器 、电动按摩器
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| H3SFN-6040-R | 6.0-12.0 | 6.0V CONSTANT | 8600 | 1.00 | 7300 | 5.90 | 326 | 31.96 | 24.82 | 70 | 38.69 | 2375 | 232.84 |

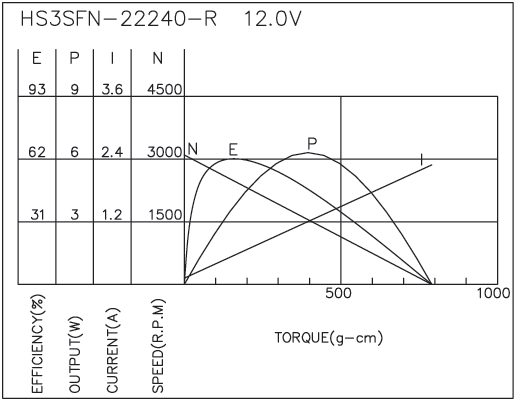

| H3SFN-22240-R | 6.0-24.0 | 12.0V CONSTANT | 3100 | 0.12 | 2600 | 0.44 | 125 | 12.25 | 3.34 | 62 | 2.29 | 790 | 77.45 |

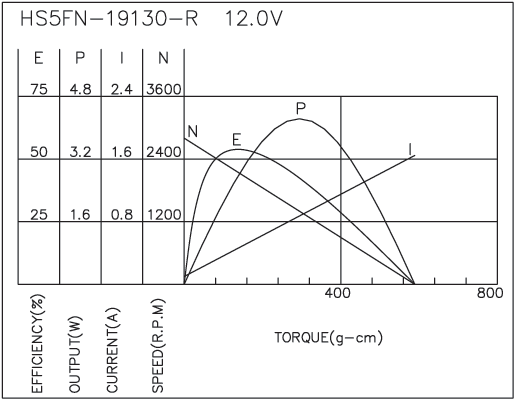

| HP5FN-19130-R | 12.0-24.0 | 12.0V CONSTANT | 2800 | 0.10 | 2100 | 0.44 | 126 | 12.35 | 2.81 | 54 | 1.65 | 589 | 57.75 |

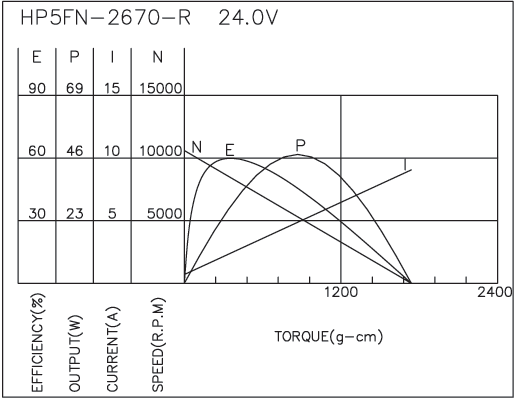

| HP5FN-2670-R | 12.0-24.0 | 24.0V CONSTANT | 10600 | 0.70 | 8600 | 1.93 | 311 | 30.49 | 27.69 | 60 | 9.05 | 1739 | 170.49 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
