BL4850无刷电机 /圆型铁壳
用途： 切割机
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| BL4850S-18V24K360W-B1X0N | 12.0-48.0 | 18.0V CONSTANT | 24000 | 3.0 | 20121 | 21.27 | 1420 | 139.22 | 293.42 | 79 | 116.94 | 9288 | 910.59 |

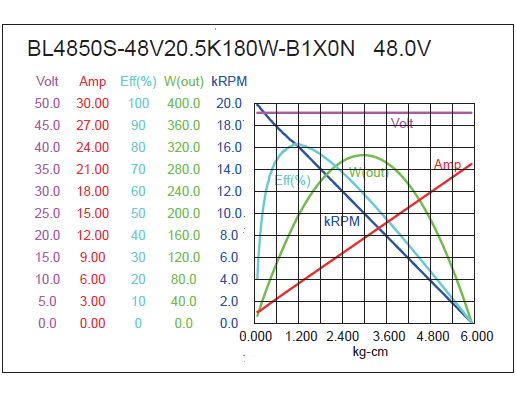

| BL4850S-48V20.5K180W-B1X0N | 12.0-48.0 | 48.0V CONSTANT | 20500 | 0.65 | 16051 | 5.41 | 1213 | 118.92 | 199.94 | 76 | 21.82 | 5946 | 582.94 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
