BL3060无刷电机 /圆型铁壳
用途： 泵浦 、电动窗帘 、水泵
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

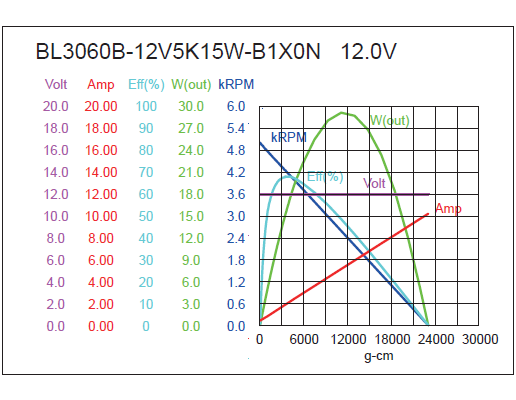

| BL3060B-12V5K15W-B1X0N | 12.0V-24.0V | 12.0V CONSTANT | 5000 | 0.37 | 4296 | 1.85 | 346 | 33.92 | 15.26 | 70 | 10.14 | 2299 | 225.39 |

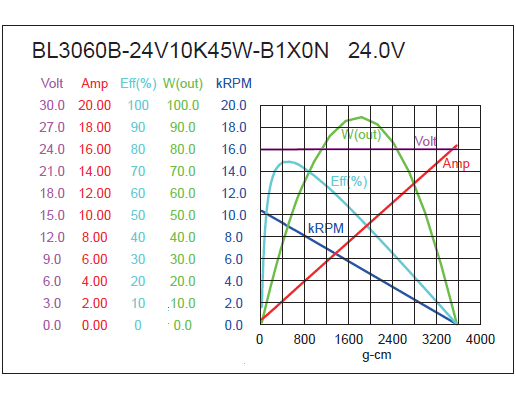

| BL3060B-24V10K45W-B1X0N | 12.0V-24.0V | 12.0V CONSTANT | 10200 | 0.41 | 9877 | 2.51 | 480 | 47.06 | 44.33 | 75 | 15.62 | 3488 | 341.96 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
