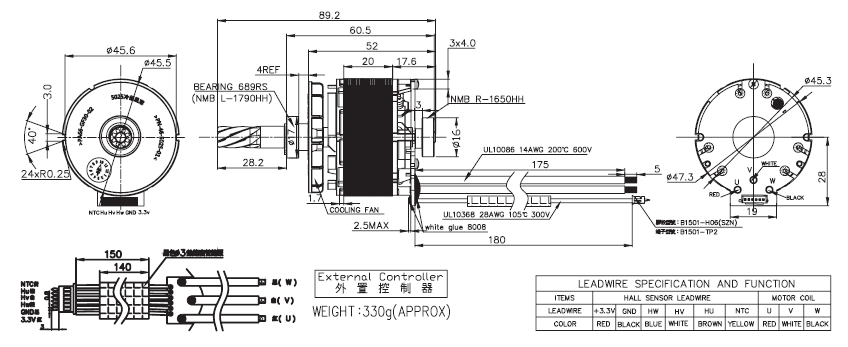

BL48F20无刷电机 /圆型铁壳
用途： 电动工具 、扳手 、螺栓机
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

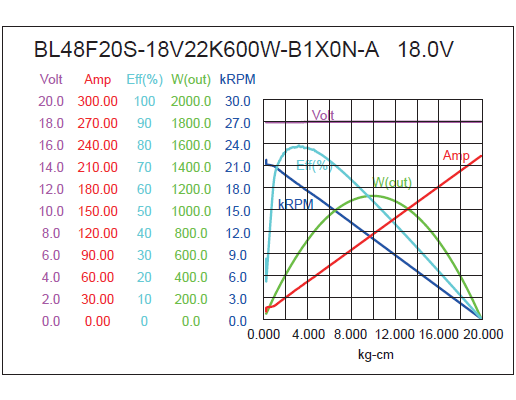

| BL48F20S-18V22K600W-B1X0N | 12.0-24.0 | 18.0V CONSTANT | 2200 | 4.6 | 18484 | 42.23 | 3.2 | 0.31 | 607 | 80 | 224.3 | 20 | 1.96 |

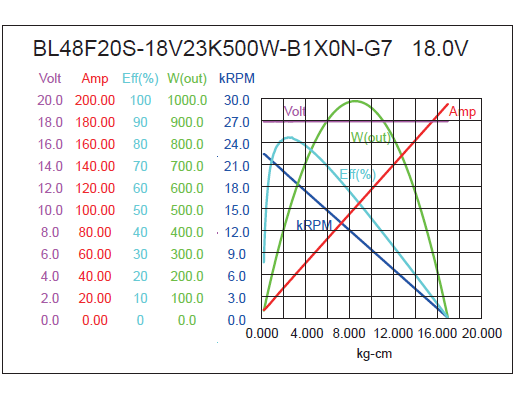

| BL48F20S-18V23K500W-B1X0N | 12.0-24.0 | 18.0V CONSTANT | 2300 | 4.4 | 19120 | 35.50 | 2.7 | 0.26 | 530 | 83 | 195.7 | 17 | 1.67 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
