SV4286伺服电机 /圆型铁壳
用途：

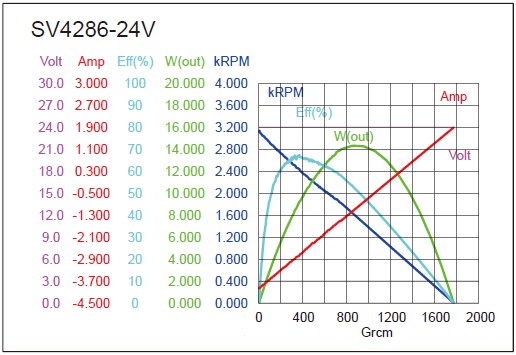

| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| SV4286-24V | 9.0-25.2V | 24.0V CONSTANT | 3150 | 0.35 | 2446 | 0.648 | 370 | 37.7 | 9.28 | 68 | 1.256 | 855.3 | 87.27 |

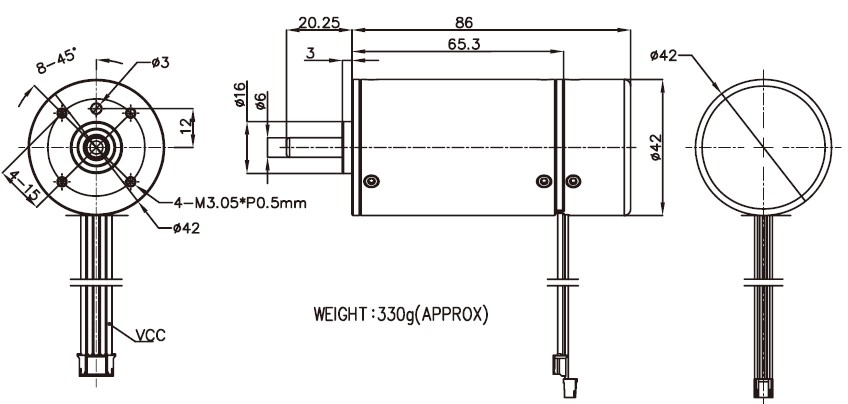

马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
