BLDC4038外转子无刷电机 /圆型铁壳
用途：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

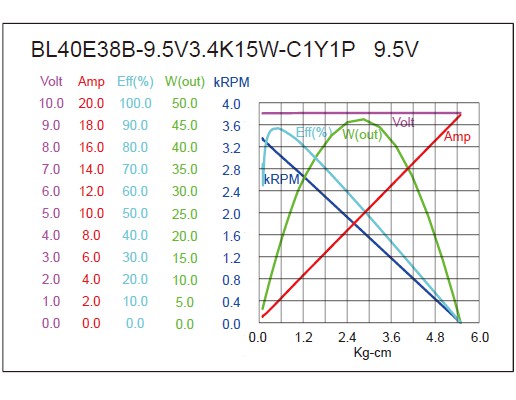

| BL40E38B-9.5V3.4K15W-C1Y1P | ---------- | 9.5V CONSTANT | 3370 | 0.33 | 3091 | 1.87 | 496 | 48.63 | 15.74 | 88 | 18.92 | 5499 | 543.22 |

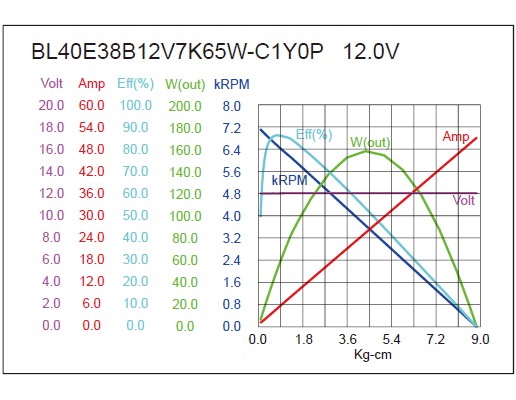

| BL40E38B12V7K65W-C1Y0P | ---------- | 12.0V CONSTANT | 7100 | 0.69 | 6553 | 4.78 | 471 | 72.65 | 49.86 | 86 | 51.09 | 8849 | 867.55 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
