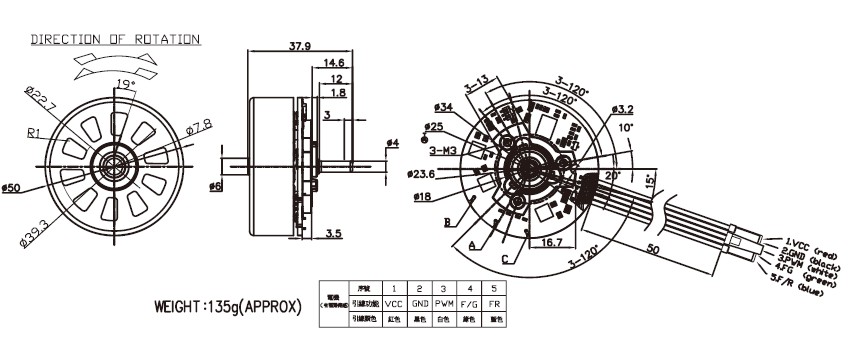

BLDC5020外转子无刷电机 /圆型铁壳
用途：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

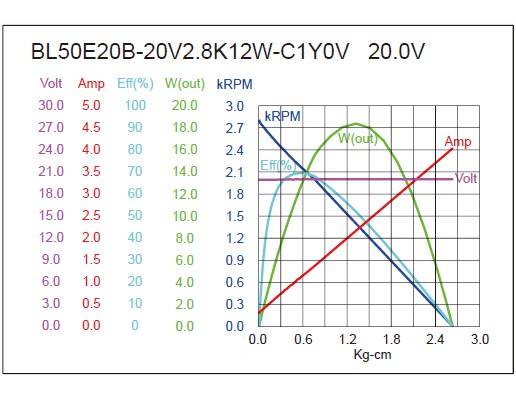

| BL50E20B-20V2.8K12W-C1Y0V | 20.0-28.0V | 20.0V CONSTANT | 2800 | 0.20 | 2173 | 1.12 | 575 | 56.35 | 12.83 | 70.1 | 4.05 | 2640 | 258.8 |

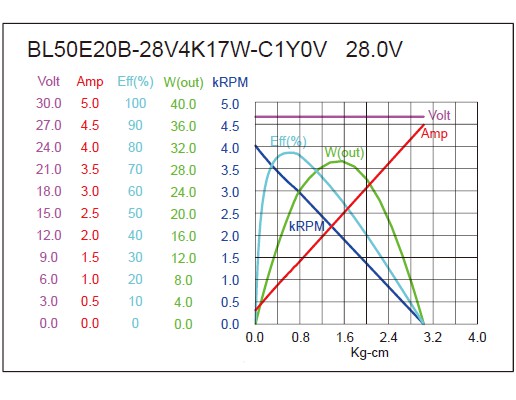

| BL50E20B-28V4K17W-C1Y0V | 20.0-28.0V | 28.0V CONSTANT | 4900 | 0.18 | 4005 | 1.56 | 589 | 57.75 | 24.22 | 85.0 | 7.90 | 3030 | 297.1 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
