BLDC5025无刷电机 /圆型铁壳
用途：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

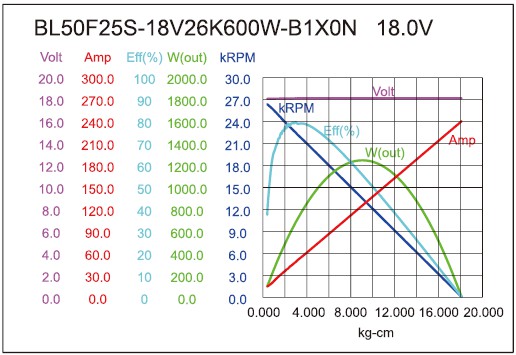

| BL50F25S-18V26K600W-B1X0N | 18.0-21.6V | 18.0V CONSTANT | 26000 | 6.20 | 22520 | 48.0 | 3000 | 294.12 | 704 | 82 | 240 | 1800 | 176 |

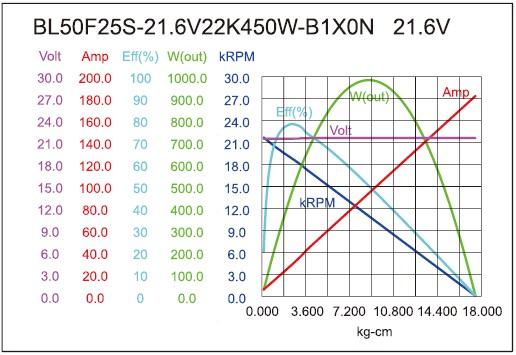

| BL50F25S-21.6V22K450W-B1X0N | 18.0-21.6V | 21.6V CONSTANT | 22000 | 5.20 | 19120 | 26.6 | 2200 | 215.69 | 446 | 79 | 182 | 1750 | 171 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
