BLDC2430无刷电机 /圆型铁壳

用途: 电动工具 、吸尘机器人



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m

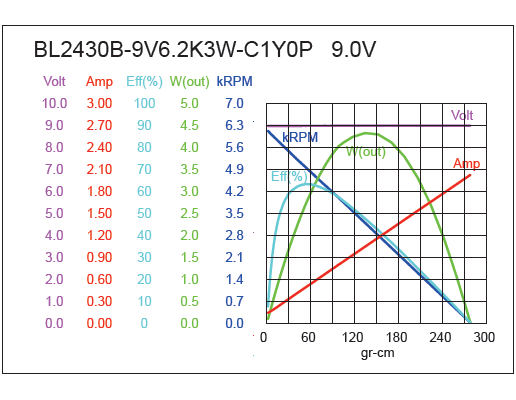

BL2430B-9V6.2K3W-C1Y0P 9.0-16.0 9.0V CONSTANT 6150 0.12 4990 0.48 52.6 5.20 2.70 64 2.0 280 27.5

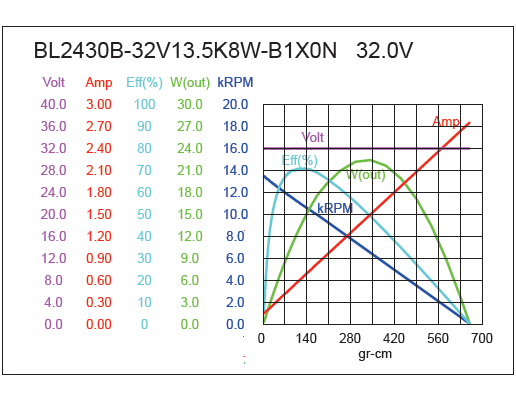

BL2430B-32V13.5K8W-B1X0N 9.0-34.0 32.0V CONSTANT 13500 0.10 10930 0.60 123.0 15.10 13.80 72 2.8 660 67.4
马达的出轴长度及性能参数,EMC 对策可依客人要求做调整,详情可询问相关业务人员。
  • torque_158633137346.jpg
  • torque_158633137372.jpg
