BLDC2414无刷电机 /圆型铁壳
用途： 吸尘机器人 、风扇
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

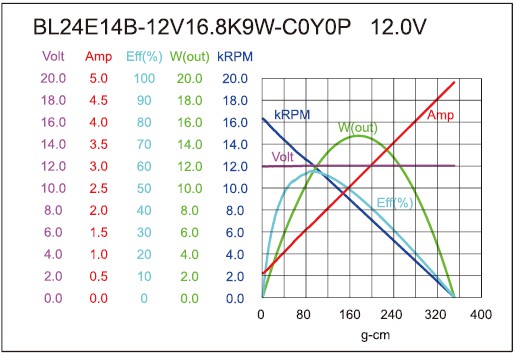

| BL24E14B-12V16.8K9W-C0Y0P | 10.0-16.0 | 12.0V CONSTANT | 17200 | 0.40 | 12359 | 1.62 | 86.9 | 8.52 | 11.04 | 58 | 4.92 | 351.15 | 34.45 |
| BL24E14B-12V23.7K20W-C0Y0P | 10.0-16.0 | 12.0V CONSTANT | 23900 | 0.45 | 19467 | 3.25 | 123.9 | 12.14 | 24.78 | 65 | 13.64 | 642.4 | 62.95 |

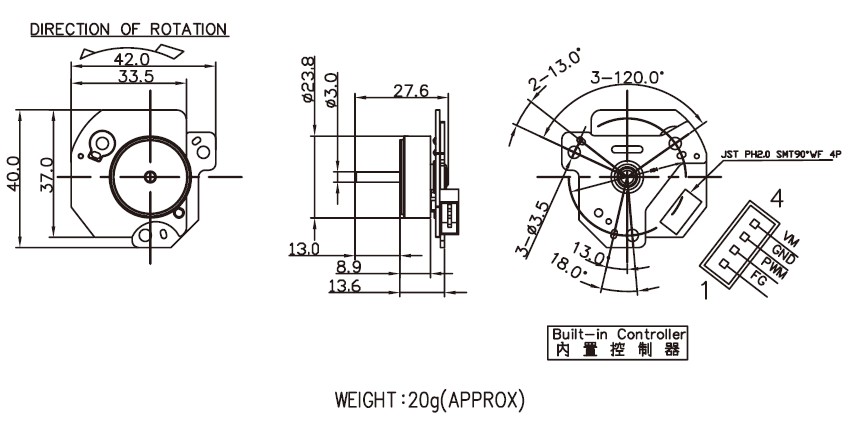

马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
