BL1625无刷电机 /圆型铁壳
用途： 基地台
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

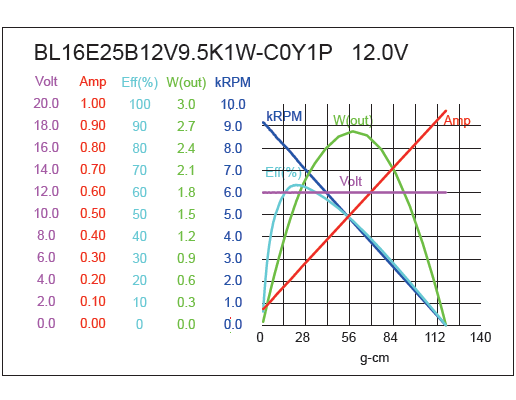

| BL16E25B-12V9.5K1W-C0Y1P | 9.0-12.0 | 12.0V CONSTANT | 9500 | 45 | 7310 | 0.26 | 24.5 | 2.40 | 1.8 | 64 | 0.97 | 118 | 11.6 |

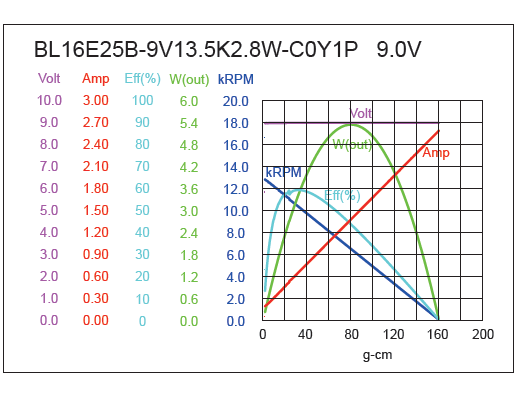

| BL16E25B-9V13.5K2.8W-C0Y1P | 9.0-12.0 | 9.0V CONSTANT | 13500 | 100 | 11100 | 0.53 | 25.0 | 2.45 | 2.8 | 62 | 3.00 | 160 | 15.7 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
