M-AA有刷电机 /圆型铁壳
用途： 汽车喷水泵
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

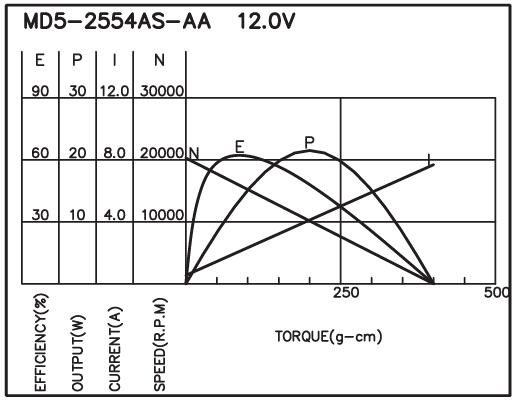

| MD5-2554AS-AA | 6.0-12.0 | 12.0V CONSTANT | 20300 | 0.55 | 17000 | 1.70 | 72.92 | 7.15 | 12.72 | 62.38 | 7.70 | 400 | 39.22 |

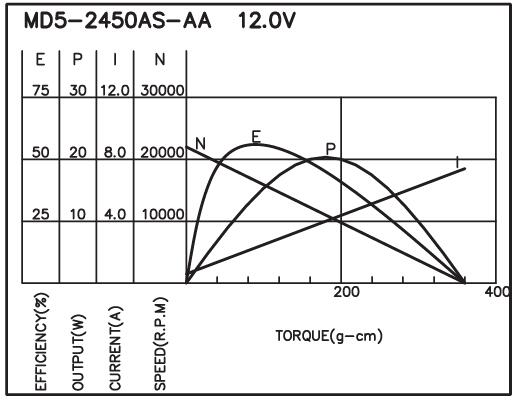

| MD5-2450AS-AA | 6.0-12.0 | 12.0V CONSTANT | 22000 | 0.60 | 17200 | 2.00 | 77.50 | 7.60 | 13.73 | 55.91 | 7.40 | 360 | 35.29 |

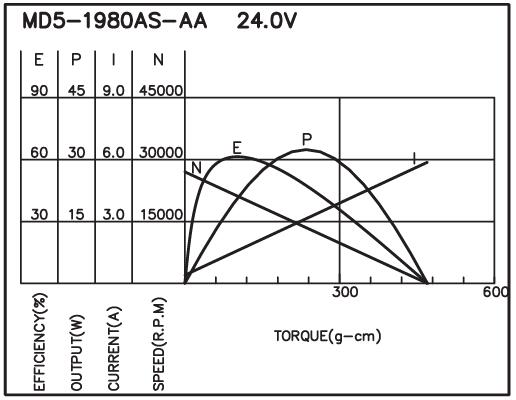

| MD5-1980AS-AA | 12.0-24.0 | 24.0V CONSTANT | 27000 | 0.40 | 22600 | 1.43 | 88.50 | 8.68 | 20.55 | 60.92 | 5.87 | 470 | 46.08 |

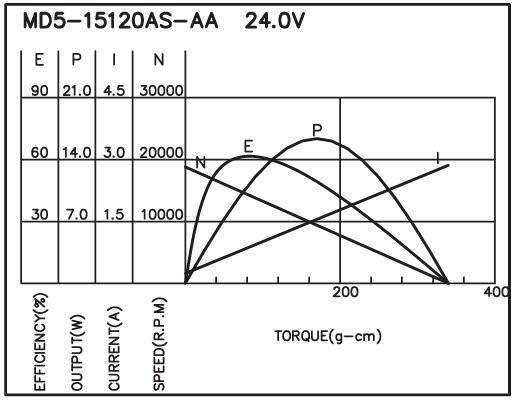

| MD5-15120AS-AA | 12.0-24.0 | 24.0V CONSTANT | 18800 | 0.24 | 15100 | 0.70 | 66.68 | 6.54 | 10.34 | 61.54 | 2.86 | 340 | 33.33 |

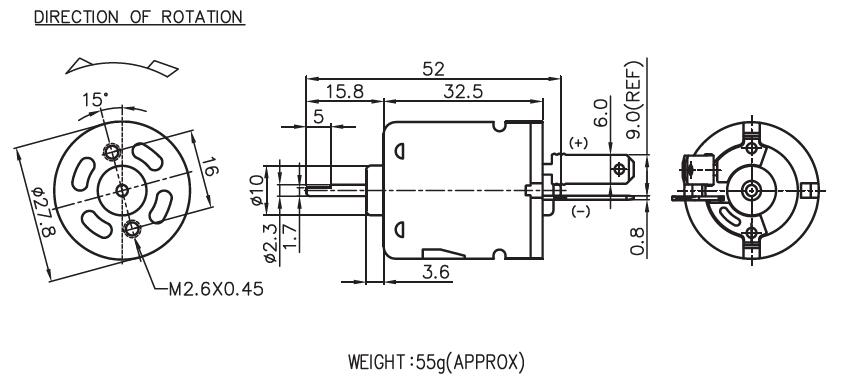

马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
