DC-260有刷马达/方型铁壳

用途: 中控锁



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m

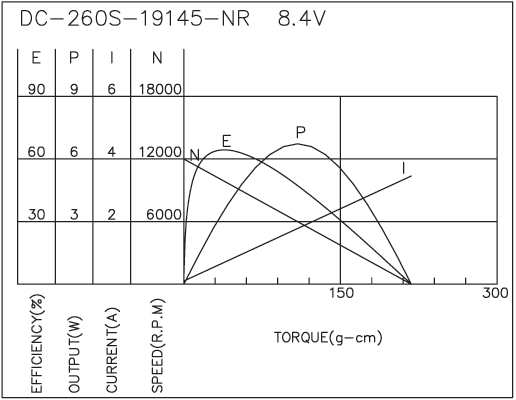

DC-260S-19145-N 6.0-12.0 8.4V CONSTANT 12000 0.13 9700 0.72 38 3.73 3.83 64 3.45 218 21.37

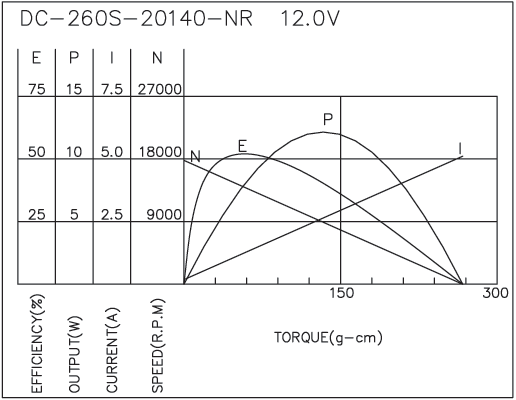

DC-260S-20140-N 6.0-12.0 12.0V CONSTANT 17800 0.18 13600 1.39 60 5.88 52 52 5.11 267 26.18

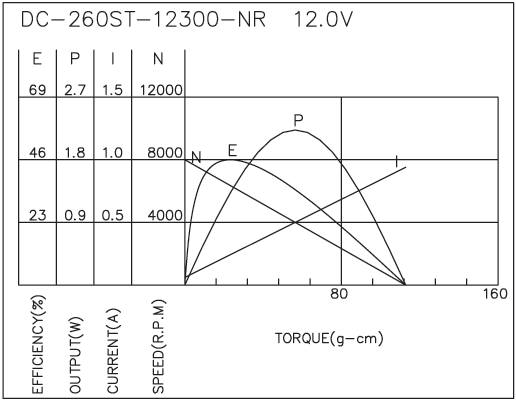

DC-260ST-12300-N 12.0-24.0 12.0V CONSTANT 8000 0.06 6100 0.26 23 2.25 1.46 46 0.94 113 11.08

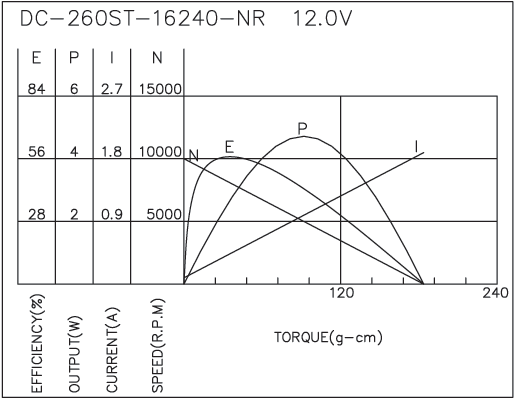

DC-260ST-16240-N 6.0-12.0 12.0V CONSTANT 10000 0.09 8100 0.43 35 3.43 2.94 57 1.89 184 18.04

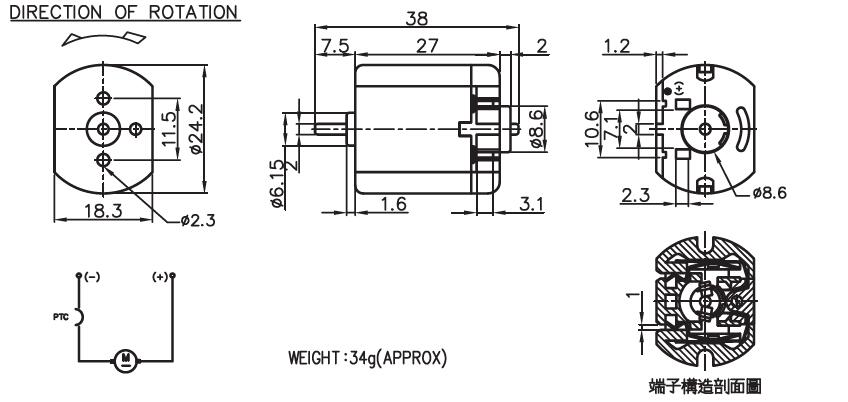

马达的出轴长度及性能参数,EMC 对策可依客人要求做调整,详情可询问相关业务人员。
  • torque_151433976936.jpg
  • torque_151433976991.jpg
  • torque_151433976927.jpg
  • torque_151433976954.jpg
