RK-525有刷马达/圆型铁壳

用途: 电动工具 、电玩把手



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m

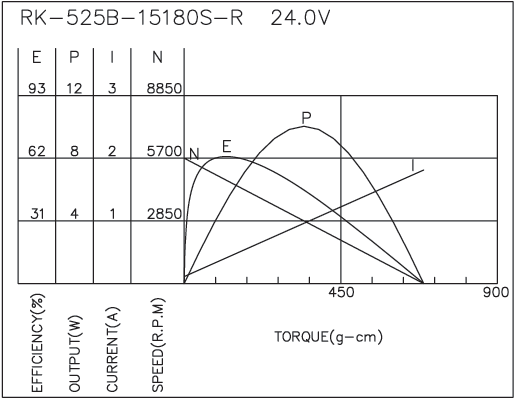

RK-525B-15180S 6.0-36.0 24.0V CONSTANT 5700 0.11 4613 0.39 118 11.57 5.59 63 1.81 688 67.45

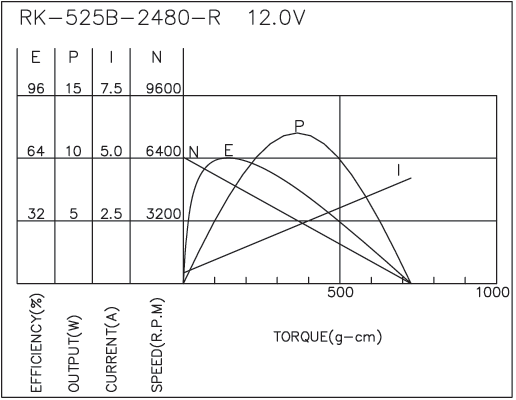

RK-525B-2480 6.0-36.0 12.0V CONSTANT 6450 0.42 5131 0.96 136 13.33 7.15 64 4.21 727 71.72
马达的出轴长度及性能参数,EMC 对策可依客人要求做调整,详情可询问相关业务人员。
